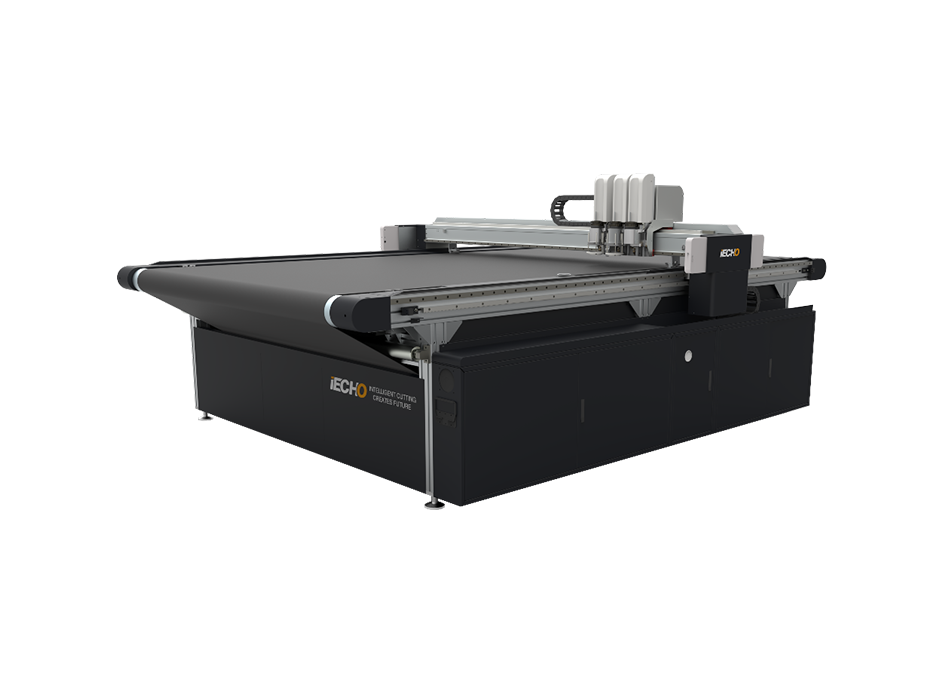

TK4S Large format cutting system
feature
X axis two motors
Large format cutting system
Side control box
Flexible working area
Aviation aluminum honeycomb panel
application
TK4S Large format cutting system provides best choice for multi-industries automatic processing, Its system can be precisely used for full cutting, half cutting, engraving, creasing, grooving and marking. Meanwhile, precise cutting performance could meet your large format requirement. User-friendly operating system will show you a prefect processing result.
parameter
| Vacuum Pump | 1-2 Units 7.5kw | 2-3 Units 7.5kw | 3-4 Units 7.5kw |
| Beam | Single Beam | Dual Beams(Optional) | |
| MAX.Speed | 1500mm/s | ||
| Cutting Accuracy | 0.1mm | ||
| Thickness | 50mm | ||
| Data Format | DXF、HPGL、PLT、PDF、ISO、AI、PS、EPS、TSK、BRG、XML | ||
| lnterface | Serial Port | ||
| Media | Vacuum System | ||
| Power | Single phase 220V/50HZ Three phase 220V/380V/50HZ-60HZ | ||
| Operating Environment | Temperature 0℃-40℃ Humidity 20%-80%RH | ||
size
| Length Width | 2500mm | 3500mm | 5500mm | Customized Size |
| 1600mm | TK4S-2516 Cutting Area: 2500mmx1600mm Floor Area: 3300mmx2300mm | TK4S-3516 Cutting Area:3500mmx1600mm Floor Area:430Ommx22300mm | TK4S-5516 CuttlingArea:5500mmx1600mm Floor Area:6300mmx2300mm | Based on the standard size of TK4s,can customize the machine according to customer’s special requirements. |
| 2100mm | TK4S-2521 Cutting Area:2500mmx210omm Floor Area:3300mmx2900mm | TK4S-3521 CuttingArea:3500mmx2100mm Floor Area: 430Ommx290Omm | TK4S-5521 CuttingArea:5500mmx2100mm Floor Area:6300mmx2900mm | |
| 3200mm | TK4S-2532 Cutting Area: 2500mmx3200mm Floor Area: 3300mmx4000mm | TK4S-3532 Cutting Area:35oommx3200mm Floor Area: 4300mmx4000mm | TK4S-5532 CuttingArea:5500mmx3200mm Floor Area: 6300mmx4000mm | |
| Other Sizes | TK4S-25265 (L*W)2500mm×2650mm Cutting Area: 2500mmx2650mm Floor Area:3891mm x3552mm | TK4S-1516(L*W)1500mm×1600mm CuttingArea:1500mmx1600mm Floor Area:2340mm x 2452mm | ||
tool
UCT
IECHO UCT can perfectly cut materials with the thickness up to 5mm. Compared to other cutting tools, UCT is the most cost-effective one that allows for the fastest cutting speed and lowest maintenance cost. The protective sleeve equipped with spring ensures the cutting accuracy.
CTT
IECHO CTT is for creasing on the corrugated materials. A selection of creasing tools allows for perfect creasing. Coordinated with the cutting software, the tool can cut the corrugated materials along its structure or the reverse direction to have a finest creasing result, without any damage to the corrugated material's surface.
VCT
Specialized for V-cut processing on corrugated materials, IECHO V-Cut Tool can cut 0° , 15° , 22.5° , 30° and 45°
RZ
With imported spindle, IECHO RZ has a rotating speed of 60000 rpm. The router driven by high frequency motor can be applied for cutting hard materials with the maximum thickness of 20mm. IECHO RZ realize the 24/7 working requirement. The customized cleaning device cleans up the production dust and debris. The air cooling system extends blade life.
POT
POT driven by compressed air, IECHO POT with 8mm stroke, is especially for cutting hard and compact materials. Equipped with different kinds of blades, the POT can make different process effect. The tool can cut the material up to 110mm by using specialized blades.
KCT
The kiss cut tool is mainly used for cutting vinyl materials. IECHO KCT makes it possible that the tool cuts through the top part of the material without any damage to the bottom part. It allows high cutting speed for material processing.
EOT
The Electrical Oscillating Tool is super suitable for cutting the material of medium density. Coordinated with various kinds of blades, IECHO EOT is applied for cutting different materials and is able to cut 2mm arc.
system
Dual beams cutting system
Equipped with double beams cutting system, can highly increase your production efficiency.
Automatic tool changer system
IECHO Automatic Tool Change（ATC）System, with automatic router bit changing system function, multiple types of router bits can change at random without human labor，and it has up to 9 different types of router bits can be set in the bit holder.
Automatic knife initialization system
The depth of cutting tool can be controlled accurately by the automatic knife initialization system(AKI).
IECHO motion control system
IECHO motion control system, CUTTERSERVER is the center of cutting and controlling, enables smooth cutting circles and perfect cutting curves.
